Amphi-Safe® LH
Safety hatch for drinking water reservoirs
Tailored safety hatch for drinking water reservoirs
An inadequate manhole increases the risk of sabotage of drinking water. If it is also leaky, pollen, air pollutants, insects or smaller animals can get access to the drinking water.
Amphi-Safe® safety hatch keeps both uninvited guests and contaminants away. The door is guaranteed to be tight and very difficult to force. When there are level changes in the reservoir, the air will pass through the air filter instead of slipping through the manhole. With Amphi-Safe® you raise the safety of the water reservoir to a new level and cleaning does not need to be carried out as often.
Drinking water is one of our most important provisions and it is the responsibility of the water producers to ensure that the drinking water is of good quality and safe to drink. To meet these requirements, the reservoir hatch must be air tight and in good condition.
Our safety hatch cover Amphi-Safe® is specially developed to suit this purpose. It is completely airtight and creates an air barrier against external pollutants and protects your drinking water in a safe way.

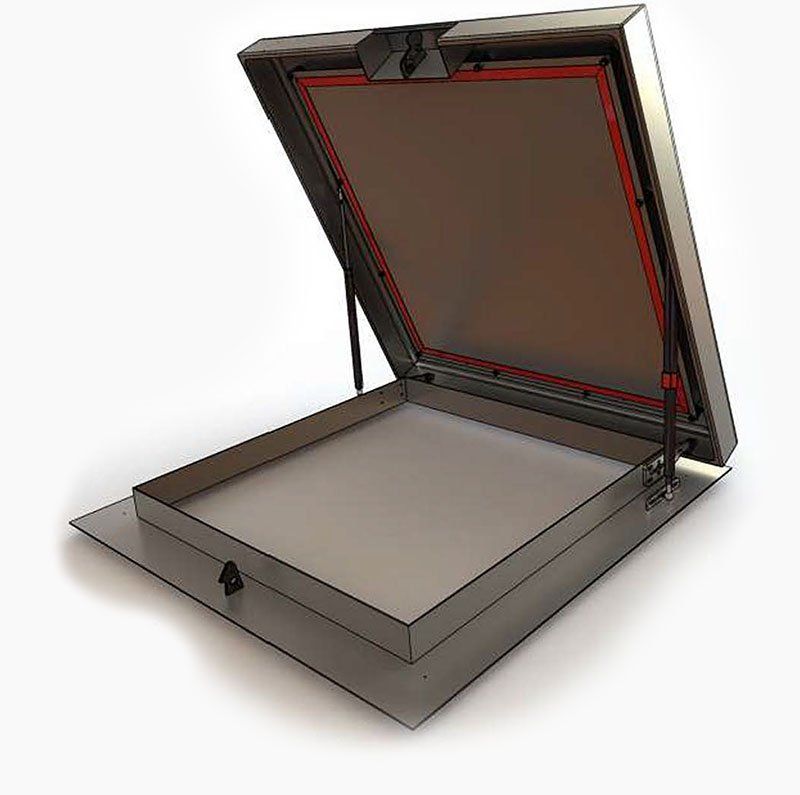

Amphi-Safe® LH is suitable for installation indoors, on top of water towers or in areas where an outer shell protection already exists
Amphi-Safe® LH – The hatch that is perfect for mounting indoors, on top of water towers or in areas where an shell protection already exists. Where higher demands are placed on shell protection, we recommend our Amphi-Safe® RC3 cover for maximum safety.
Our LH door shares many details with the RC3 door, where you will find the big difference in the locking mechanism. On this hatch, the padlock is not built into the construction but is located on the edge of the door. The padlock is weatherproof and has a flexible locking mechanism for easy and smooth opening.
- Protects against sabotage and leakage
- Sealing strip that prevents freezing of the hatch
- Weather resistant
- Completely airtight
- Hidden hinges
Patent number 1851140-2
Function
Amphi-Safe® LH is a completely airtight door that creates an air barrier against external pollutants and protects your drinking water in a safe way. It has hidden hinges that minimize the risk of sabotage. Our patented construction with spring-suspended sealing strip makes the manhole completely airtight.
| Technical data | Options | Inner sizes |
|---|---|---|
| Stainless steel, EN 1.4307 | Options | 660 x 660 mm |
| Concealed break-protected details | Insulation | 860 x 860 mm |
| Hygienic | Fall protection | 1060 x 1060 mm |
| Double sheet metal barriers | Fall protection | Inner sizes |
